4D_Info_Report

The 4D_Info_Report component (formerly called Info Report) is a powerful tool for analyzing and monitoring a running 4D database and its environment, which can help to size the cache, check activated logs or diagnose technical problems such as memory leaks, server misconfigurations, etc.

View on GitHub

Overview

This page documents standalone in the 4D_Info_Report reference.

Discover the Component run in stand-Alone

(Opening directly the component database and creating once a requested data file).

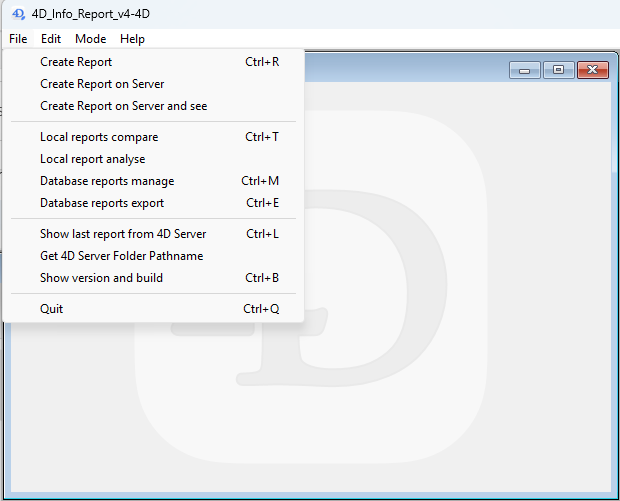

Using the custom menu when running in Stand-Alone, you can check how it works

First section of the File menu:

Creation of one report

Second section of the File menu:

Third section of the File menu:

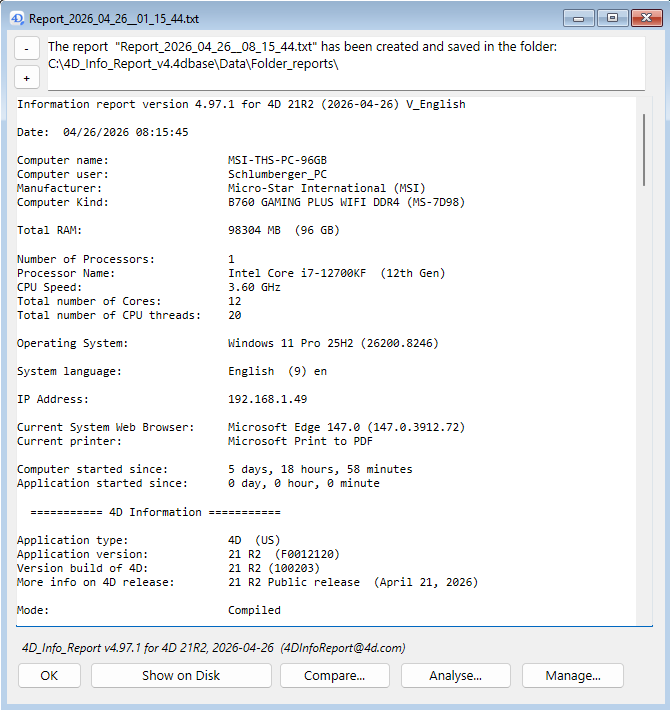

Executing the shared method aa4D_NP_Util_CreateReport or aa4D_M_Report_CreateOnServerSee, after a few seconds (the first time), a new dialog is displayed including the generated report content:

When in Local mode, the Show on Disk button will open the content of the Folder_reports, with the last report selected. The upper part of the dialog indicates where the report created was saved.

When in Remote mode, if the report was not generated locally, then you can select a local folder to save the imported reports (via the Save in Local Reports Folder button). If this folder is not already set on 4D remote, a dialog will let you set one.

Two buttons: - and + allow to decrease/increase the font size of the report, also when focus is on the report area. Default is 12, or the one set in 4DIR_Preferences.json (Default_Report_FontSize). The changed size of the font will be remembered for next display of a report until restart.

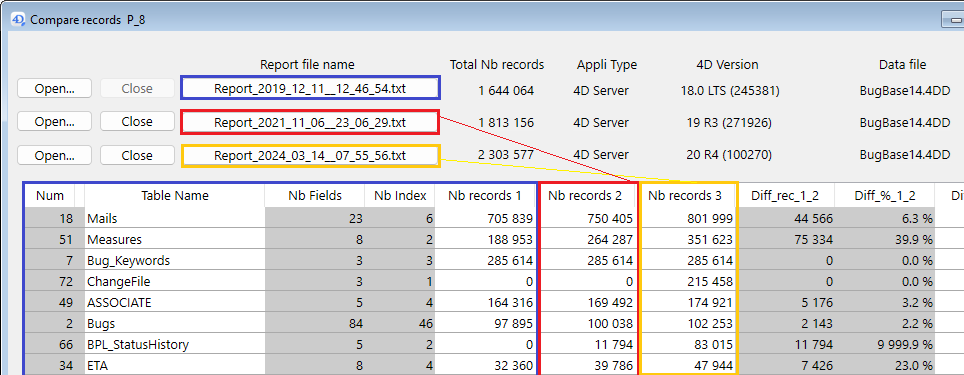

The Analyse… button will display a new dialog, allowing a simple comparison with one or two other reports (use the shared method aa4D_NP_Report_Analyse_Display).

Note: if a Diff_% value displays as “9999.9 %”, this means infinite diff (there was no record before).

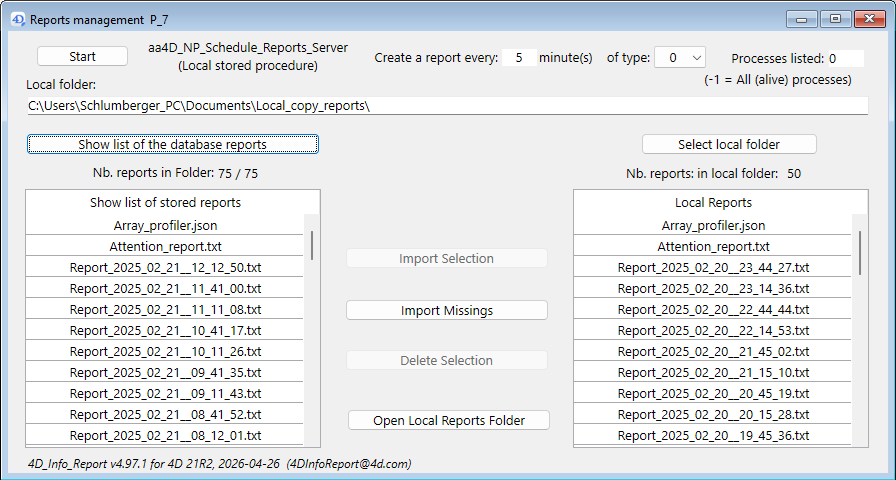

The Manage… button will display a new dialog, allowing (in Remote mode) to import reports stored on 4D Server, and set the stored procedure that creates a new report every N minute(s) (Real):

When this dialog is displayed:

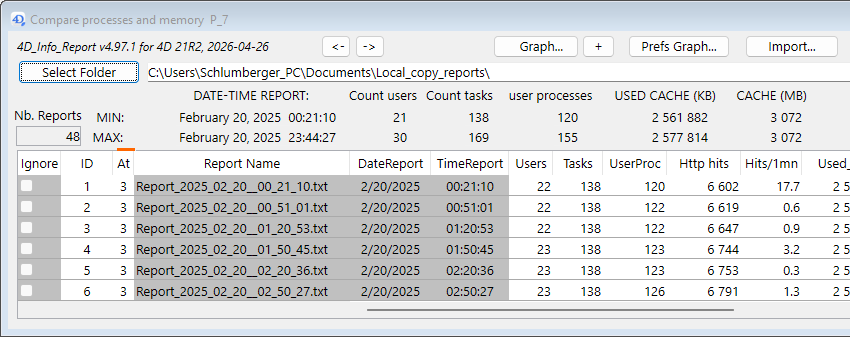

The Compare button will display a new dialog, allowing to compare the main values of saved reports in this folder (same as when executing the shared method aa4D_NP_Report_Compare_Display).

When opening the component as a database, you can display this dialog via the menu of the Application window: File/Local reports compare. As the dialog is opened in a new process, you can handle multiple folders at the same time. Same dialog display when executing the shared method aa4D_NP_Report_Compare_Display.

If you click one or more Ignore checkbox, the corresponding report will be ignored in the MINIMUM and MAXIMUM values calculation, and also when choosing the Graph… button.

To modify many Ignore checkboxes at once, just set a selection of rows in the List Box and click one of the corresponding Ignore checkbox to invert the state in the selection.

You can also double-click one row of the List Box to open directly the report (if you have parsed a folder, or if the Import of the Blob was done without changing the location).

Next to the Parse Folder button, there is a text variable where you can input or paste the path of the folder to parse. You can also drop a folder (containing reports) over it to input the path name of this folder.

The Parse Folder button is used to select a folder containing reports created by the component. If there is a valid folder path already entered next to the button, you will get this confirmation dialog:

Do you want to select another report folder?

Clicking Cancel will force the parsing of the current folder, clicking OK will let you navigate to select another folder, and after confirmation of the selected folder, will parse this new folder.

When a folder is selected, a parsing of the reports inside this folder will populate arrays in the List box about the usage of the database. If some reports contain Attention : items, the column At will show how many are found. If any is found in each report (in the Attention section), a red line is shown above the column.

The buttons <, > and » allow to resize the width and height of the dialog.

The Import button allows to import a Blob generated via the Export button, that only contains the values used in the List Box. It is much faster than processing all the reports again when there are many reports in the folder, and if the original folder is still in its original location, you will be able to open the reports via a double-click in the List box as if you have parsed the folder again.

The Export button allows you to select a format and a name to export the content of these arrays. You can for example:

The first column of the list box (Ignore) is to select or not a list of reports for further action:

Note that you can apply a check to a selection of lines: all will get the new value after a click.

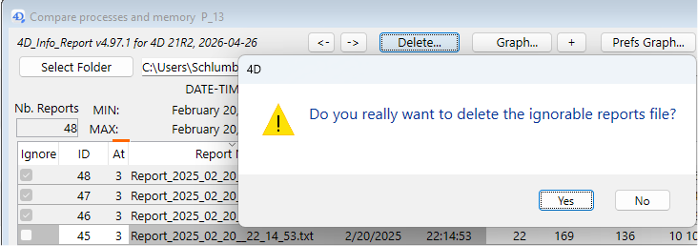

The Delete… button is visible if at least one checkbox Ignore has been set:

Attention: If you click Yes, the reports with Ignore checkbox checked will be deleted from the parsed folder. Note: this feature also works on 4D remote, as long as the location of the folder of reports is local (not on 4D Server).

There are two lines (MIN and MAX) above the List box: these 2 lines show the Minimum and Maximum values found in not ignored reports for each type of information.
