Real Time Monitor Page

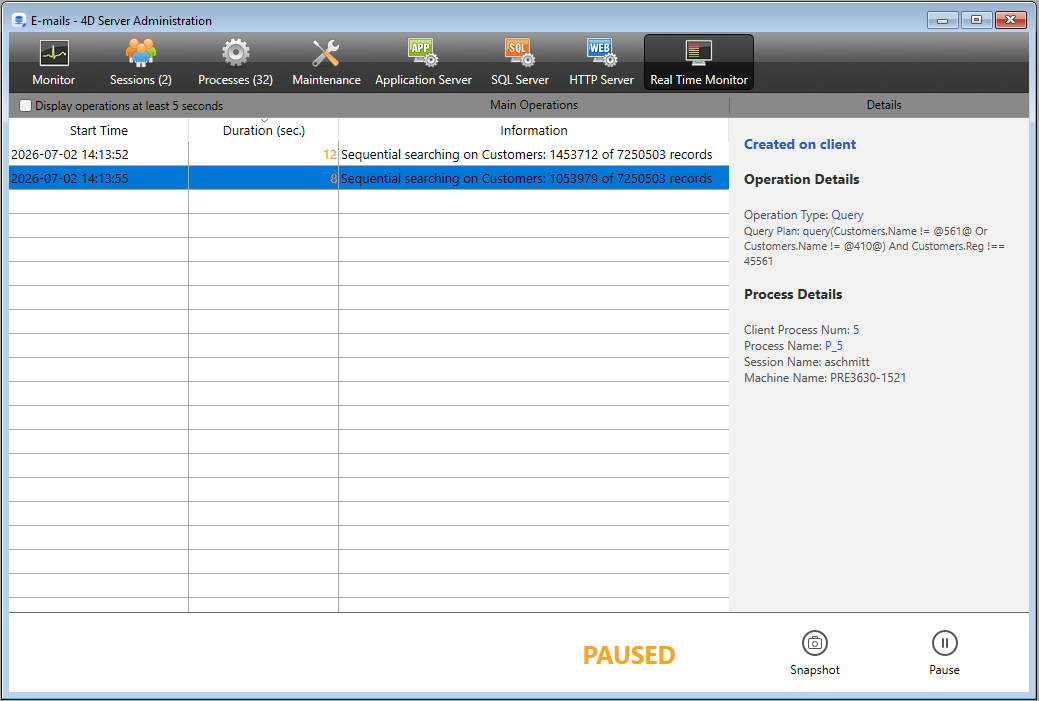

The Real Time Monitor page monitors the progress of "long" operations performed by the application in real time. These operations are, for example, sequential queries, execution of formulas, etc.

This page is available in the administration window of the server machine and also from a remote 4D machine. In the case of a remote machine, this page displays data from operations performed on the server machine.

É acrescentada uma linha para cada operação longa efetuada nos dados. This line automatically disappears when the operation is complete (you can check the Display operations at least 5 seconds option to keep quick operations on screen for 5 seconds, see below).

As informações seguintes são fornecidas para cada linha:

  • Start Time: starting time of operation in the format: "dd/mm/yyyy - hh:mm:ss"
  • Duração (ms): duração em milissegundos da operação em curso
  • Informações: título da operação.
  • Details: this area displays detailed information which will vary according to the type of operation selected. Mais especificamente:
    • Created on: indidates whether the operation results from a client action (Created on client) or if it was started explicitly on the server by means of a stored procedure or the "Execute on server" option (Created on server).
    • Operation Details: Operation type and (for query operations) query plan.
    • Sub-operations (if any): Dependent operations of the selected operation (e.g. deleting related records before a parent record).
    • Process Details: Additional information concerning the table, field, process or client, depending on the type of operation

Real-time monitoring page uses the GET ACTIVITY SNAPSHOT command internally. Para mais informações, consultar a descrição deste comando.

A página está ativa e é atualizada permanentemente assim que é exibida. It should be noted that its operation can significantly slow the execution of the application. It is possible to suspend the updating of this page in one of the following ways:

  • clicando no botão Pause,
  • clicando na lista,
  • premindo a barra de espaços.

When you pause the page, a "PAUSED" message appears and the button label changes to Resume. You can resume monitoring of the operations by performing the same action as for pausing.

Modo avançado

The RTM page can display additional information, if necessary, for each listed operation.

To access the advanced mode for an operation, press Shift and select the desired operation. All available information is then displayed in the "Process Details" area without any filtering (as returned by the GET ACTIVITY SNAPSHOT command). As informações disponíveis dependem da operação selecionada.

Eis um exemplo de informações apresentadas no modo padrão:

In advanced mode (Shift+Click on the operation), additional information is displayed:

Botão instantânea

The Snapshot button allows you to copy to the clipboard all the operations displayed in the RTM panel, as well as their related details (process and sub-operation info):

Mostrar operações durante pelo menos 5 segundos

If you check the Display operations at least 5 seconds option, any listed operation will be displayed on the page for at least five seconds, even after its execution is finished. As operações retidas aparecem esbatidas na lista de operações. Esta funcionalidade é útil para obter informações sobre operações que são executadas muito rapidamente.
